AP440 Access Point hardware and specifications

Topic

This article provides the feature and hardware specifications for the Datto Networking AP440 access point.

Environment

  • Datto Networking AP440 access point

Description

Form factor


Specifications

Application

802.11ax Indoor/Outdoor Cloud-Managed WiFi Access Point

Bands

2.4GHz + 5 GHz
Wireless connectivity 802.11a/b/g/n/ac/ax 2.4GHz: 2x2, 5GHz 2x2 MU-MIMO + OFDMA 2.4GHz: 20/40 MHz channels (802.11ax) 5GHz: 20/40/80 MHz channels (802.11ax)
Supported frequency bands (country-specific restrictions apply) 2.412-2.484 GHz 5.150-5.250 GHz( UNII-1) 5.735-5.825 GHz (UNII-3)
Speed (rated) 1.8 Gbps 2.4GHz - 573.5 Mbps, 5GHz - 1201 Mbps
Range (approximate) 100’-200’ indoor (3-4 walls) 300’-450’ outdoor

Max users (recommended)

*Measured concurrently with 5 Mbps of TCP traffic

 150 per AP*
Cloud management Yes

Security

WPA/WPA2 Personal and Enterprise, WPA3 Personal and Enterprise

Dedicated scanning radio

Yes

Integrated BLE

No

Other

Captive portal/splash pages, user management capabilities, and much more
Automatic firmware upgrades Yes
Automatic feature upgrades Yes
Zero config plug and play Yes
Self-forming, self-healing mesh Yes
Seamless roaming Yes
Mounting Installation kit included: T-Rail, solid ceiling or wall, Ethernet gangbox or pole mount (steel clamps and grounding cable not included)
External antennas No
Ethernet/LAN 2 x Gigabit
PoE 802.3at, 12V DC power
Power consumption (peak) 25.5 W
CPU Qualcomm IPQ6010
Memory 1G DRAM DDR3
LED indicators Nine-color LED status indication
Hardware watchdog Yes
Indoor/outdoor rating UL+CE marked for outdoor/indoor use, IP54
Certifications EN 62368-1, UL 62368-1, UL 60950-22, IEC 60950-1, IEC 60529, EN 55024, EN 55032, EN 55035, EN 62311, EN 50385, EN 300.328, EN 301.489-1 and EN 301.489-17, EN 301.893, AS/NZS 4268, AS/NZS CISPR 32, ICES-003, RSS-247, RSS-102, RSS-GEN, FCC Part 15 B, C, E
Operating temperature -20° to 50° C (-4° to 122° F)
Humidity 5% to 93% non-condensing internal
Size 185.6mm x 185.6mm x 40 mm (7.31” x 7.31” x 1.58”)
Weight 0.544 Kg (1.19 lb)

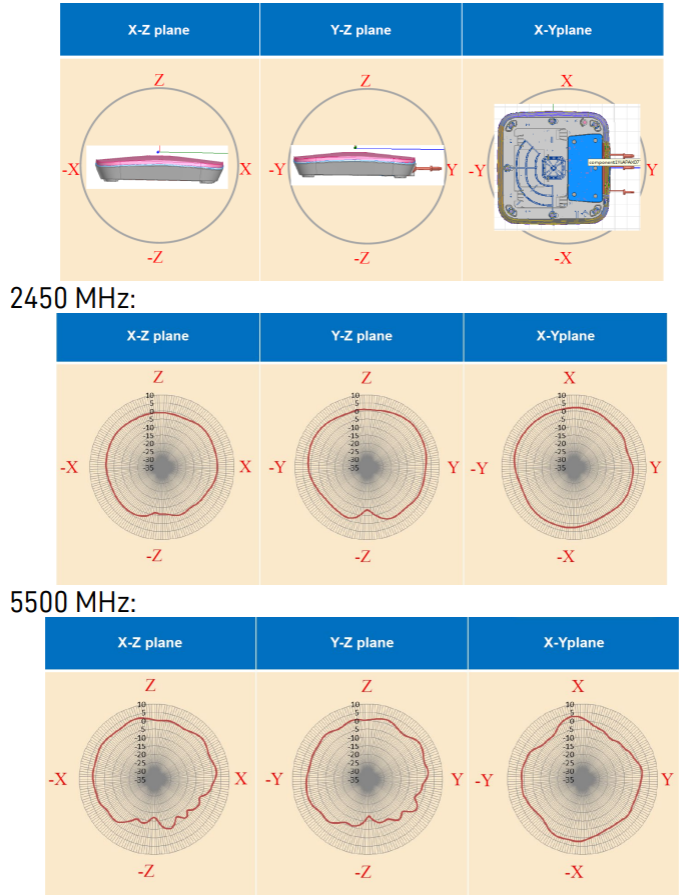

Radiation patterns
