MP10 features & specifications

Topic

This article provides the hardware specifications and region availability for the Datto MP10.

Environment

  • Datto MP10 (Datto Managed Power)

Description

The MP10 provides one fully managed and monitored power port and can be deployed in setups where a critical appliance requires power management, such as a networking router or modem.

Device Layout

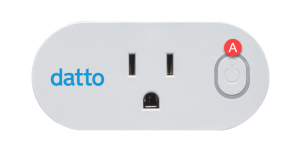

Figure 1: MP10-US

A: Power button w/ LED indicator

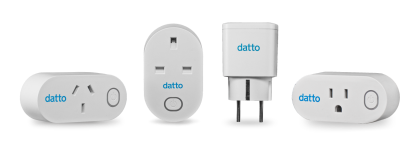

Figure 2: International models

Technical Specifications

MP10-US MP10-AU MP10-EU MP10-UK
Outlets 1 managed outlet 1 managed outlet 1 managed outlet 1 managed outlet
Voltage 100-125V 15A
60 Hz input		 100-230V 15A
50 Hz input		 100-230V 15A
50 Hz input		 100-230V 15A
50 Hz input
Idle Power Draw 1W 1W 1W 1W
WiFi 2x2 802.11n WiFi 2x2 802.11n WiFi 2x2 802.11n WiFi 2x2 802.11n WiFi
Dimensions 7.9 cm x 3.6 cm x 5 cm (3.11" x 1.42" x 1.97") 7.9 cm x 3.6 cm x 5 cm (3.11" x 1.42" x 1.97") 8.1 cm x 4.5 cm x 4.5 cm (3.19" x 1.77" x 1.97") 5.2 cm x 7.6 cm x 4.7 cm (2.05" x 2.99" x 1.85")
Weight .15lbs .14lbs .16lbs .18lbs

Environmental Conditions

  • Indoor use only
  • Altitude up to 2000 m
  • Temperature 5° C to 40° C
  • Maximum relative humidity 80% for temperatures up to 31° C, decreasing linearly to 50% relative humidity at 40° C
  • MAINS supply voltage fluctuations up to ±10% of the nominal voltage
  • Pollution Degree 2

Regulatory Notes

  • Disconnection means: Type 1B
  • Pollution degree: 2
  • Automatic action: 100,000 cycles
  • AC Input: AC ~100-125V (~100-230V for MP10-EU, -AU, and -UK), 15A Max 60 Hz (50 Hz for MP10-EU, -AU, and -UK) 1875W

Product Operation

  • Clean only with a dry cloth
