Datto Networking Appliance (DNA): Region, coverage, and hardware specifications

Topic

This article provides the layout, hardware specifications, failover coverage, and region availability for the Datto Networking Appliance. For feature descriptions, see the Getting Started article.

Environment

  • Datto Networking Appliance (DNA)

Description


Figure 1: Device layout, front

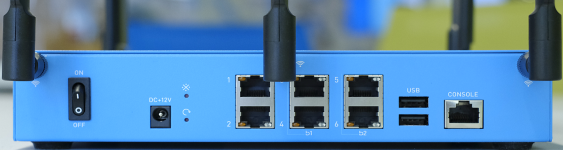

Figure 2: Device layout, rear

Hardware Specifications

DNA-VZ4 (Discontinued)
Availability: United States

Form Factor Bi-directional Rackmount or Desktop
Motherboard Custom
Processor Intel Atom C2758
OS Drive 32 GB Industrial Compact Flash
Memory 8 GB DDR3
NICs 6
WiFi N
Wireless Carrier Verizon
Idle Power Consumption 17W
Warranty 3 Year Advanced Replacement Warranty

DNA-VZ5
Availability: United States

Form Factor Bi-directional Rackmount or Desktop
Motherboard Custom
Processor Intel Atom C2758
OS Drive 32 GB Industrial Compact Flash
Memory 8 GB DDR3
NICs 6
WiFi AC
Wireless Carrier Verizon
Idle Power Consumption 17W
Warranty 3 Year Advanced Replacement Warranty

DNA-NA5-CA
Availability: Canada

Form Factor Bi-directional Rackmount or Desktop
Motherboard Custom
Processor Intel Atom C2758
OS Drive 32 GB Industrial Compact Flash
Memory 8 GB DDR3
NICs 6
WiFi AC
Wireless Carrier Rogers
Idle Power Consumption 17W
Warranty 3 Year Advanced Replacement Warranty

DNA-NA5-US
Availability: United States, Puerto Rico, US Virgin Islands

Form Factor Bi-directional Rackmount or Desktop
Motherboard Custom
Processor Intel Atom C2758
OS Drive 32 GB Industrial Compact Flash
Memory 8 GB DDR3
NICs 6
WiFi AC
Wireless Carrier AT&T
Idle Power Consumption 17W
Warranty 3 Year Advanced Replacement Warranty

DNA-EA5-KZ1
Availability: Ireland, Northern Ireland, Wales, Scotland, England, Portugal, Spain, Italy, Netherlands, Germany, Czech Republic, Greece, Hungary, Romania, Albania, Montenegro, Australia

Form Factor Bi-directional Rackmount or Desktop
Motherboard Custom
Processor Intel Atom C2758
OS Drive 32 GB Industrial Compact Flash
Memory 8 GB DDR3
NICs 6
WiFi AC
Wireless Carrier Vodafone
Idle Power Consumption 17W
Warranty 3 Year Advanced Replacement Warranty
