Using Cooper Insight to Disable Mesh Networking for Single AP Networks

Topic

This article covers using Cooper Insight to disable mesh networking for single AP networks in the Datto Networking Manager.

Environment

  • Cooper
  • Datto Network Manager

Description

All access points in a network share the same settings configured on the Advanced page.

Disable Mesh Networking

1. In the Navigation menu, click Access Points, then select Advanced from the expanded options.

Figure 1: The Navigation menu

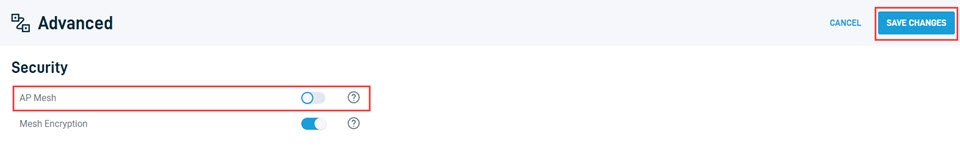

2. Under the Security options, ensure that the AP Mesh option is deselected to disable the mesh functionality between Access Points and then select Save Changes.


Figure 2: Security options

Do not deselect the Mesh Encryption option

3. If needed, you can select additional networks to repeat this process from the menu at the top of the page.


Figure 3: Select network
