Legacy Open Mesh: A62 Access Point PoE specifications

Topic

This article lists PoE specifications for the A62 access point.

Environment

  • Open Mesh A62 Access Points

Description

Ports:

  • Ethernet 1: 802.3af/at (PoE/PoE+)
  • Ethernet 2: Passive 18-24 V?1.34-1 A (Mode A, B, A+B)

Wattage:

  • Maximum draw is 18.2 W
  • Typical peak draw under normal operation is 14 W
  • Typical unused idle draw is around 7 W

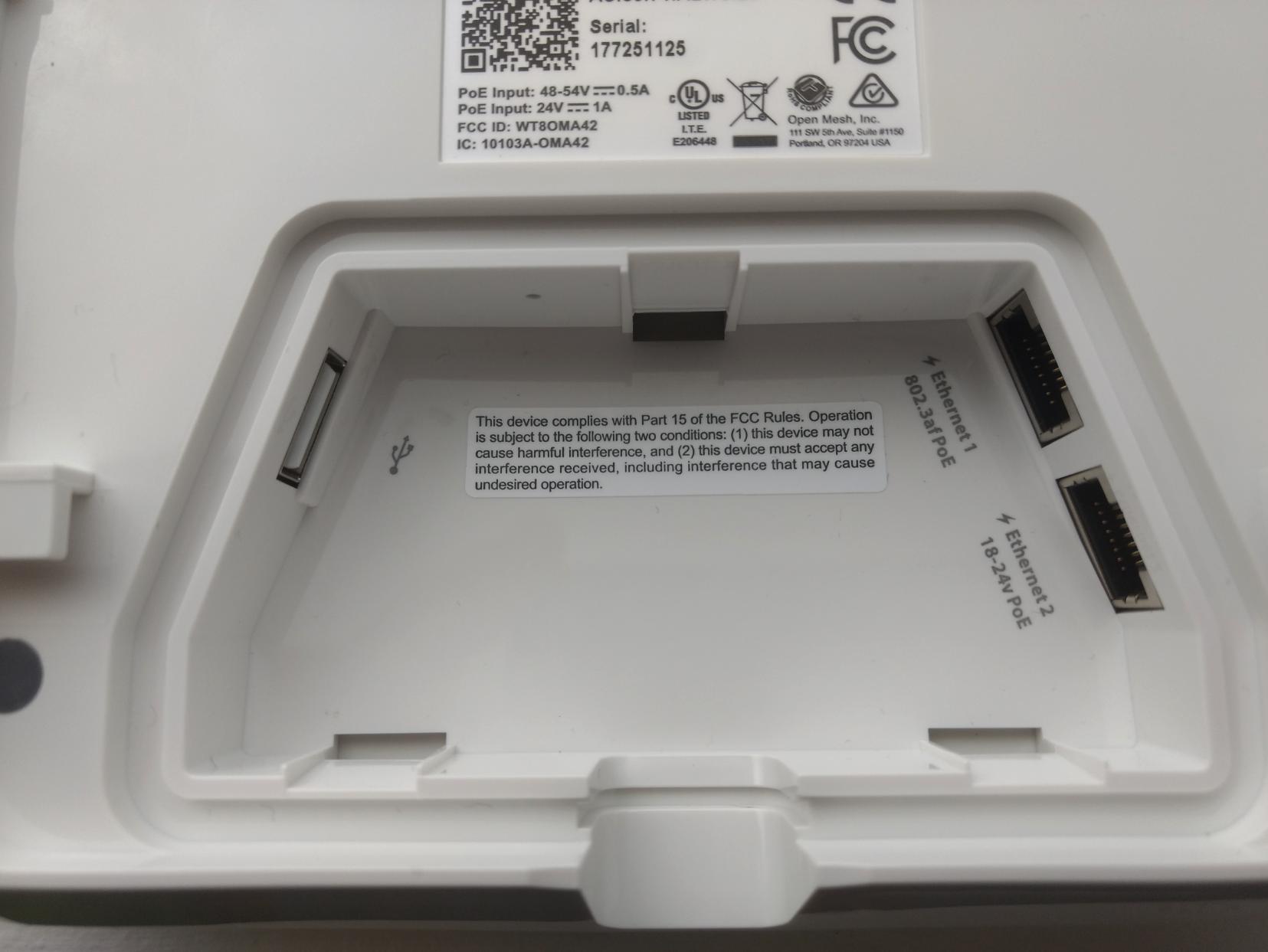

Figure 1: A62 AP port location
