Legacy Open Mesh: Configuring Router Quality of Service (QoS)

Topic

This article describes how to configure and implement Quality of Service (QoS) using Open Mesh Routers.

Environment

  • Open Mesh Router

Description

Requirements

  • Router firmware 1.0.6 or later is required for QoS.

Navigation

Quality of Service (QoS) allows operators to prioritize application traffic to ensure latency affected data, such as VoIP and video conferencing, is uninterrupted in a congested network. Open Mesh Routers allow you allocate a percentage of bandwidth to certain priority classes, and then assign these priority classes to application specific traffic.

Procedure

1. Navigate to Manage -> Routers, and select a router.

2. Click on QoS.


Figure 1: Router Settings

Configuring QoS

Traffic Shaping & Priority Setup

The Downstream Bandwidth and Upstream Bandwidth should be configured according to the tested bandwidth speed of your internet connection. You should only use Negotiated Link Speed if you know your internet connection bandwidth is actually the same as your negotiated link speed.

Priority

Priority classes allow you to set the reserved bandwidth percentage that you would like to allocate to each Priority class. The bandwidth percentage that is configured applies to both upstream and downstream traffic.

The minimum percentage that can be configured is 5% and the maximum is 100%. We do not recommend exceeding a combined total of 100% for high, medium, and low.

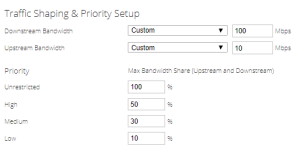

Figure 2: Traffic Shaping and Priority Setup

Application QoS

You can assign different priority classes to different traffic types by selecting the priority class in the drop down menu.


Figure 3: Application QoS

For more information on the the filters used to determine each Traffic Type, please see the article Quality of Service (QoS) - Application Traffic Types.
