E8 Switch hardware and specifications

Topic

This article provides the hardware specifications and region availability for the Datto Networking E8 Switch.

If your Datto Switch firmware is older than version 1.03.24, to ensure uninterrupted device operation, see our Required Firmware Update for Datto Switches article for important information.

Environment

• Datto Networking E8 Switch

Description

Device Layout

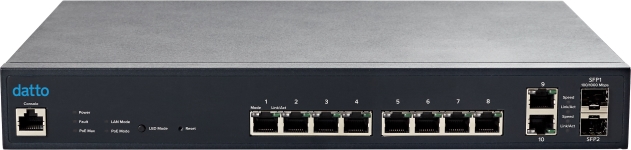

Figure 1: Datto Networking E8 Switch, front view

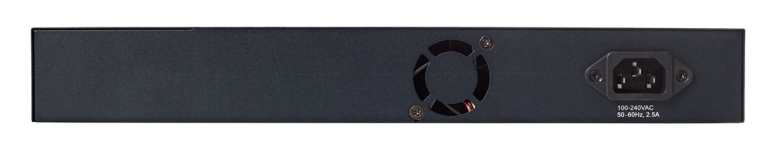

Figure 2: Datto Networking E8 Switch, rear view

Hardware Specifications and Features

10/100/1000Mb Ports	10
PoE Capable Ports	Ports 1-8 output up to 30W
PoE Budget	150W
Switching Capacity	20 Gbps
SFP port support	SFP only (not SFP+)
Cloud Management	No on-site management appliance required, automatic firmware upgrades, automatic future-proofing via new and upgraded features
Layer 2 Features	802.1Q VLANs, port trunking/802.3ad link aggregation, port mirroring, auto-detect uplink port, port isolation, IGMP snooping, rate limiting (Tx/Rx), flow control, LLDP, MAC ACLs, IPv4 ACLs, jumbo frames
Spanning Tree Protocol	802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), 802.1s Multiple Spanning Tree (MSTP)
QoS (Quality of Service)	802.1p/CoS, DSCP
PoE Management	Power on/off per port, power class configuration, power feeding with priority, user-defined power limit
VoIP Phone System Support	QoS, Voice VLAN + OUI list, LLDP-MED
Integration Support	RMM/PSA
Additional Management	BootP/DHCP client, SNMP v1/v2c, cable diagnostic, ping, traceroute
MIB Support	RFC1213, RFC1493, RFC1757, RFC2674
Mounting	Desktop, wall mount
Idle Power Consumption	9W
Power Supply	Internal power supply
Power Cable	US/EU/UK/AU
PoE Standard	IEEE 802.3at/af up to 30W per port
SDRAM	256 MB
Flash Memory	32 MB
LED Indicators	Power, Fault, PoE Max, LAN Mode, PoE Mode, Speed, Link/Act
Dimensions	13" × 9" × 1.7"
Weight	4.48 lbs
Operating Temperature	0° C to 50° C (32° to 122° F)
Storage Temperature	-40° C to 70° C (-40° to 158° F)
Humidity	5 to 95% non-condensing
