E48 Switch Hardware & Feature Specifications
Topic
This article provides the hardware specifications and region availability for the Datto Networking E48 Switch.
Environment
- Datto Networking E48 Switch
Description
Device Layout

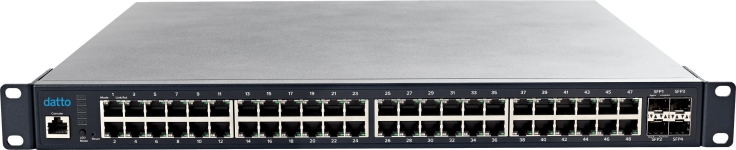

Figure 1: Datto Networking E48 Switch, Front View

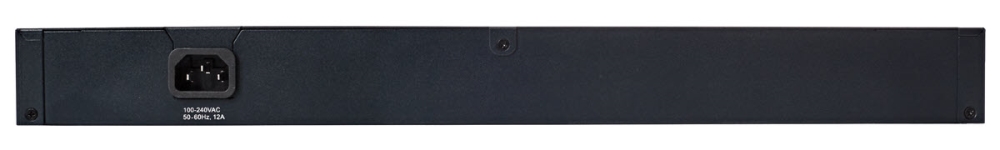

Figure 2: Datto Networking E48 Switch, Back View
Hardware Specifications and Features
10/100/1000Mb Ports | 48 |
Uplink | 4 x SFP 1 GB |
PoE Capable Ports | Ports 1-48 output up to 30W |
PoE Budget | 740W |
Maximum PoE Utilization | 760W |
Switching Capacity | 104 Gbps |
Cloud Management | No onsite management appliance required, automatic firmware upgrades, automatic future-proofing via new and upgraded features |
Layer 2 Features | 802.1Q VLANs, Port Trunking/802.3ad link aggregation, port mirroring, auto-detect uplink port, port isolation, IGMP snooping, rate limiting (Tx/Rx), flow control, LLDP, MAC ACLs, IPv4 ACLs, jumbo frames |
Spanning Tree Protocol | 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), 802.1s Multiple Spanning Tree (MSTP) |
QoS (Quality of Service) | 802.1p/CoS, DSCP |
PoE Management | Power on/off per port, power class configuration, power feeding with priority, user-defined power limit |
VoIP Phone System Support | QoS, Voice VLAN + OUI list, LLDP-MED |
Integration Support | RMM/PSA |
Additional Management | BootP/DHCP client, SNMP v1/v2c, cable diagnostic, ping, traceroute |
MIB Support | RFC1213, RFC1493, RFC1757, RFC2674 |
Mounting | Desktop, wall mount, rack mount (included) |
Idle Power Consumption | 34W |
Power Supply | Internal power supply |
Power Cable | US/EU/UK/AU |
PoE Standard | IEEE 802.3at/af up to 30W per port |
SDRAM | 256 MB |
Flash Memory | 32 MB |
LED Indicators | Power, Fault, PoE Max, LAN Mode, PoE Mode, Speed, Link/Act |
Dimensions | 17.3" x 16.1" x 1.7" |
Weight | 4.48 lbs |
Operating Temperature | 0° C to 50° C (32° to 122°F) |
Storage Temperature | -40° C to 70° C (-40° to 158°F) |
Humidity | 5 to 95% non-condensing |
