Switches: Internet Protocol (IP) Settings

Topic

This article describes Internet Protocols options available and how to configure them on a Datto Switch.

NOTE  Static IP configuration for Datto Networking Switches is available for devices on firmware 1.00.27 and later. For more information in releases please refer to: Second-generation Datto Switch firmware release notes.

Environment

  • Datto Switches

Description

Datto Switches default to use DHCP addressing, but may be configured to use a statically assigned IP address, Gateway, and DNS. The default VLAN may also be adjusted from VLAN 1 to any other configured VLAN on the network.

Procedure

  1. Navigate to portal.dattobackup.com.

  2. Log in with your Partner Portal credentials.

  3. From the header menu, select Status > Networking Status.

  1. Click on the Launch Network Manager button.

    The All Networks page will be displayed.

  2. Select Switches from the left navigation menu, then Switch Settings from the expanded options.

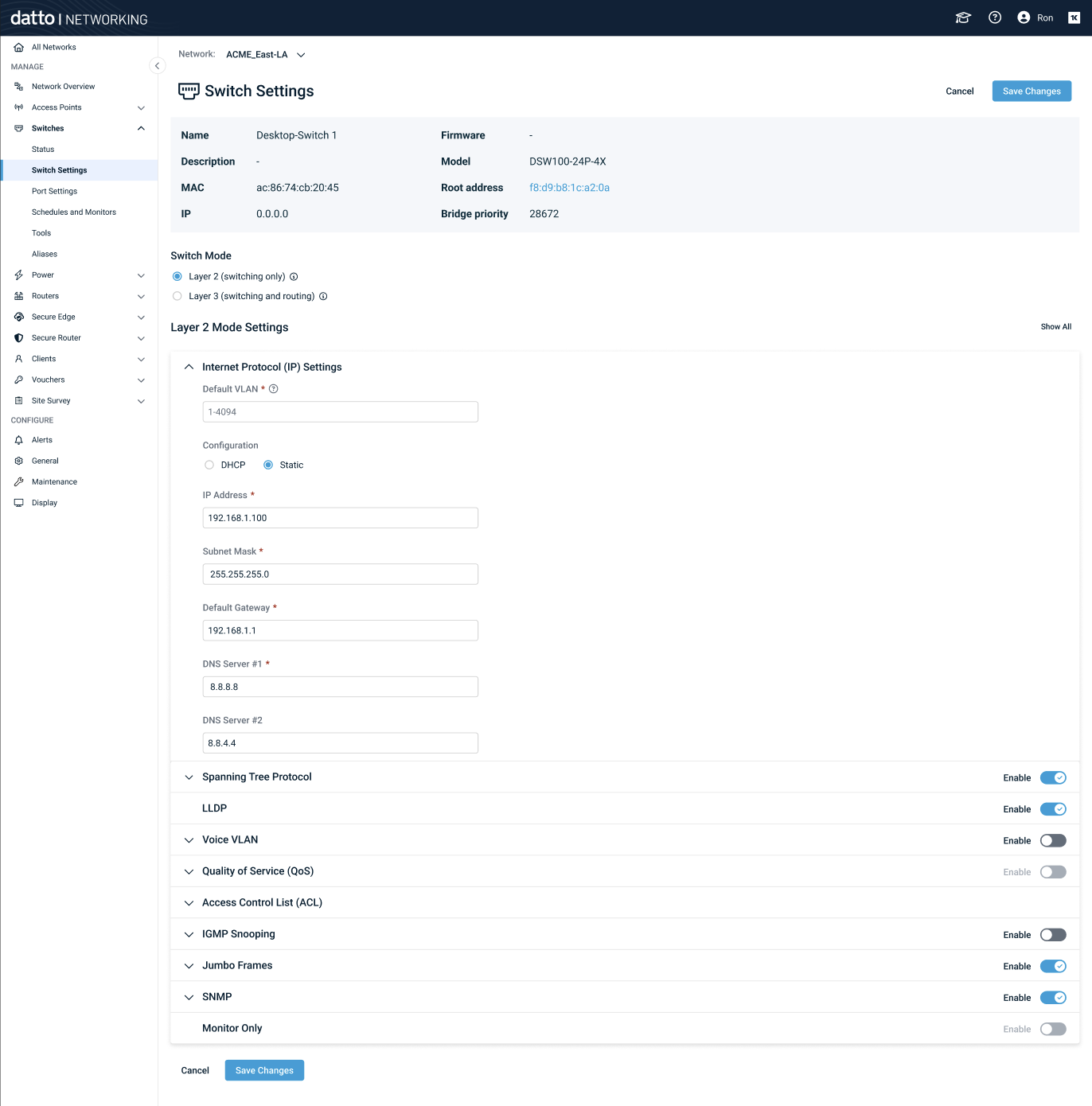

  3. Under Layer 2 Mode Settings, select Internet Protocol (IP) Settings to expand the options.

  4. Enter a number between 1 and 4094 to change the default VLAN to the corresponding VLAN.

  5. Select Static configuration to configure the options manually.

  6. Click Save Changes, to save the settings.
