DSW100-8P-2G switch hardware & feature specifications
This article provides the hardware specifications for and defines the functions of the lights on the DSW100-8P-2G switch.
For setup information, refer to Managing your Datto Switch.
Layout and specifications
Layout

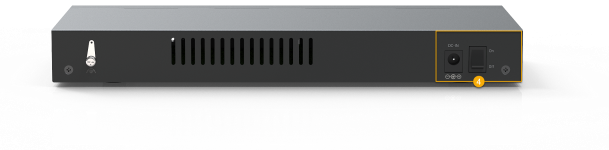

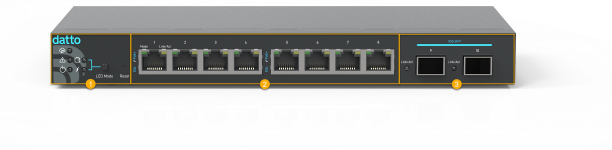

| Front view | Rear view |
|---|---|
|
|
|
| Exploded view | |
|---|---|
|
|
| Legend | Definition |
|---|---|
| 1 | Status indicator group; LED mode toggle; factory reset button |
| 2 | Copper port group |
| 3 | SFP port group |
| 4 | Power supply |
Specifications
| Copper ports | 8 |
| Optical ports | 2 SFP |
| PoE budget (W) | 110 |
| PoE standard | PoE+ |
| Copper port speeds (GigE / MultiGig) | 8 x GigE |
| Static routing (L2 vs L2+) | Capable |
| Stackable | No |
| Backplane (gbps) | 20 |
| Management | Managed through Datto Network Manager |
| Network protocol and standards compatibility | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX IEEE 802.3x Flow Control IEEE 802.3af/at |
| Maximum VLAN ID | 4096 |
| Jumbo frame | Up to 10,000 bytes |
| Unicast MAC addresses | 8,000 |
| Packet buffer memory | 0.51 MB |
| Factory reset button | Push button to reset the device to factory defaults |
| Mode button | Push button to change the LED functions on the front of the device |
| AC input | 100 - 240 VAC, 50/60Hz External power adapter 54V/2.22A (Total 119.88W) |
| Operation temperature | 0° C to approximately 40° C (32° F to 104° F) |
| Storage temperature | -20° C to approximately 70° C (-4° F to 158° F) |
| Humidity |
Operation: 10% to approximately 90% relative humidity Storage: 5% to approximately 95% relative humidity |
| Dimensions (W x D x H) | 240 x 105 x 27 mm (9.4" x 4.1" x 1") |
| Emissions | FCC, CE (Class A) |
| Safety | LVD |
Lights
Status indicator group
| LED indicator | Color | Behavior | Description |
|---|---|---|---|
|
Power
|
Amber | Blinking | System initializing |
| Solid | Device power is on and system is ready | ||
| Off | Device power is off | ||
|
Fault
|
Amber | Solid | A device fault has been detected |
| Off | No device faults are detected | ||
|
Cloud
|
Green | Solid | Last device check-in with the Datto Cloud was successful |
| Blinking | Device is attempting a check-in with the Datto Cloud | ||
| Off | Device cannot check in with the Datto Cloud | ||
|
LAN Mode
|
Green | Solid | LED mode is set to Ethernet |
|
PoE Mode
|
Green | Solid | LED mode is set to PoE |
Copper port group
| LED indicator | Color | Behavior | Description |
|---|---|---|---|
| Mode (LAN) | Green | Solid | Speed 1000 Mbps |
| Off | Off | Speed 100/10 Mbps/no link | |
| Mode (PoE) | Green | Solid | Power feeding |
| Off | Off | No power feeding | |
| Link/Act | Green | Solid | Link is active |
| Blinking | Transmit or receive activity is occurring on this port | ||
| Off | No link |
SFP ports
| LED indicator | Color | Behavior | Description |
|---|---|---|---|
| Link/Act | Green | Solid | Link is active |
| Blinking | Transmit or receive activity is occurring on this port | ||
| Off | No link |
