Switches page overview
Topic
This article gives an overview of Datto Network Manager's Switches page.
Environment
- Datto Network Manager
Description
Datto Network Manager's Switches page lets you add, configure and manage switches on your Datto network.
Index
- Navigating to the Switches page
- Using the Switches page
- Advanced Switch Status information
- Using the Switch Settings page
- Using the Port Settings page
- Using the Troubleshooting Tools page
- Additional Resources
Navigating to the Switches page
From the Navigation menu, expand the Manage tab, then click Switches.
Using the Switches page
- Click the Add Switch button to add a new switch. Read Getting started with Datto Switches to learn more about adding and configuring switches.
- Click Manage Templates to administer settings across your switch fleet. Read Datto Networking: Switch templates to learn more about global switch settings.

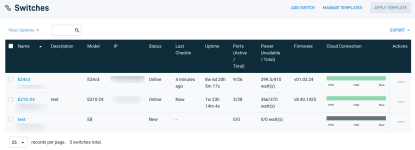

Below these options, Network Manager will show a list of all switches on the network, along with the following at-a-glance information:
- Device name and MAC address (click the switch name for in-depth status statistics)
- Switch description
- Model
- IP address
- Last check-in
- Uptime
- Ports (active / total)
- Power (available / total)
- Connectivity to the cloud server for each device (represented as a horizontal bar graph covering the last three hours)
- A column for further actions for each device
Additional actions on the Switches page
To access additional management options for each switch, click the three dots in the rightmost column. Additional options are:
- Apply Template
- Create Template
- Reboot
- Move to Network
- Replace Switch
- Delete Device

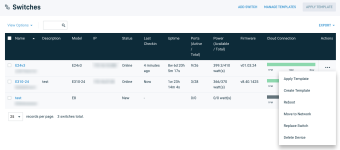

Figure 3: Additional actions on the Switches page
Advanced switch status information
Click a switch's device name for expanded status information. The following new options will also appear under Switches in the Navigation menu:
- Switch Settings
- Port Settings
- Tools
Figure 4: The Switch Status page
Using the Switch Settings page
On this page, you can configure the following switch options:
- Spanning Tree Protocol (STP)
- LLDP
- Voice VLAN
- Quality of Service (QoS)
- Access Control Lists (ACLs)
- IGMP Snooping
- Jumbo Frames
- SNMP
- Monitor Only
Read Getting started with Datto Switches to learn more about switch settings.
Figure 5: The Switch Settings page
Using the Port Settings page
The Port Settings page shows all active ports on the switch and lets you configure them individually. Read Datto Networking: Switch port settings to learn more about port settings.
Figure 6: The Port Settings page
Using the Troubleshooting Tools page
The Troubleshooting Tools page lets you reboot the switch and test individual ports with the following tools:
- Cable Diagnostics
- LLDP Neighbors
- Ping
- Traceroute
- Connected Devices
Choose your tool from the Tools drop-down menu, choose the port from the Ports drop-down menu, then click the Run Test on Port button.
Figure 7: The Troubleshooting Tools page
